Classification Tree

Author

Ayisha Beauge

##Library

analysis_train <- readRDS(here("models", "data", "analysis_train.rds"))
analysis_data <- readRDS(here("models", "data", "analysis_data.rds"))
analysis_folds <- readRDS(here("models", "data", "analysis_folds.rds"))

carry_weapon_recipe_tree <-
  recipe(formula = WeaponCarryingSchool ~ ., data = analysis_train) |>
  step_impute_mode(all_nominal_predictors()) |>
  step_impute_mean(all_numeric_predictors())

carry_weapon_recipe_tree

── Recipe ──────────────────────────────────────────────────────────────────────

── Inputs

Number of variables by role

outcome:    1
predictor: 10

── Operations

• Mode imputation for: all_nominal_predictors()

• Mean imputation for: all_numeric_predictors()

carry_weapon_spec_tree <-
  decision_tree(
   cost_complexity = tune(),
   tree_depth = tune(),
   min_n = tune()) |>
  set_engine("rpart") |>
  set_mode("classification")

carry_weapon_spec_tree

Decision Tree Model Specification (classification)

Main Arguments:
  cost_complexity = tune()
  tree_depth = tune()
  min_n = tune()

Computational engine: rpart

carry_weapon_workflow_tree <-
workflow () |>
  add_recipe(carry_weapon_recipe_tree) |>
  add_model(carry_weapon_spec_tree)
carry_weapon_workflow_tree

══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: decision_tree()

── Preprocessor ────────────────────────────────────────────────────────────────
2 Recipe Steps

• step_impute_mode()
• step_impute_mean()

── Model ───────────────────────────────────────────────────────────────────────
Decision Tree Model Specification (classification)

Main Arguments:
  cost_complexity = tune()
  tree_depth = tune()
  min_n = tune()

Computational engine: rpart

##tree tunifn

tree_grid <-
  grid_regular(cost_complexity(),
               tree_depth(c(2, 5)),
               min_n(),
               levels = 2)
tree_grid

# A tibble: 8 × 3
  cost_complexity tree_depth min_n
            <dbl>      <int> <int>
1    0.0000000001          2     2
2    0.1                   2     2
3    0.0000000001          5     2
4    0.1                   5     2
5    0.0000000001          2    40
6    0.1                   2    40
7    0.0000000001          5    40
8    0.1                   5    40

cart_tune <-
  carry_weapon_workflow_tree |>
  tune_grid(resamples = analysis_folds,
            grid = tree_grid,
            metrics = metric_set(roc_auc),
            control = control_grid(save_pred = TRUE)
  )

cart_tune

saveRDS(cart_tune, here("model_outputs", "tree_tune.rds"))

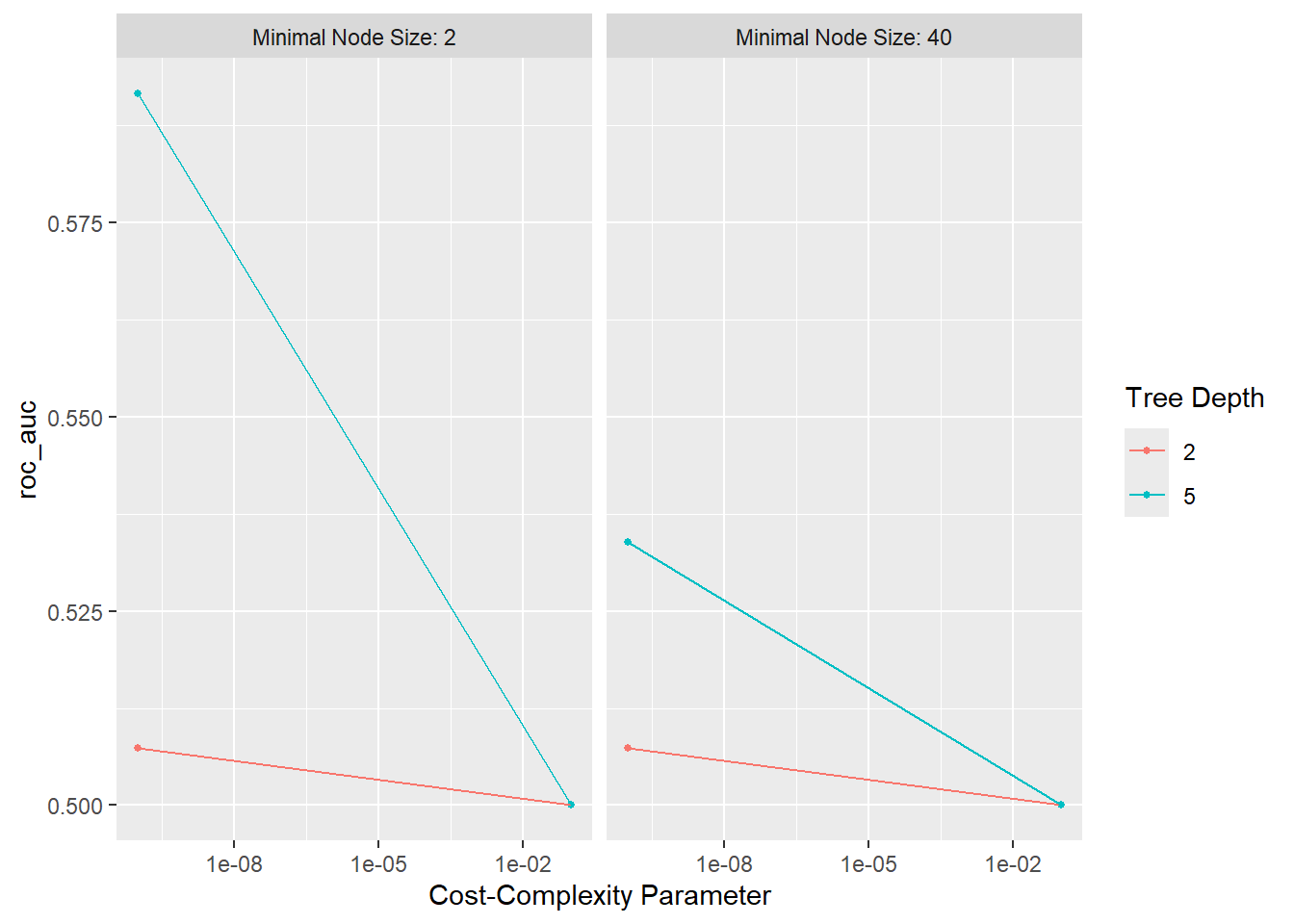

bestPlot_cart <-
  autoplot(cart_tune)

bestPlot_cart

best_cart <- select_best(
  cart_tune,
  metric = "roc_auc")

best_cart

# A tibble: 1 × 4
  cost_complexity tree_depth min_n .config
            <dbl>      <int> <int> <chr>
1    0.0000000001          5     2 Preprocessor1_Model3

cart_final_wf <- finalize_workflow(carry_weapon_workflow_tree, best_cart)
cart_final_wf

══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: decision_tree()

── Preprocessor ────────────────────────────────────────────────────────────────
2 Recipe Steps

• step_impute_mode()
• step_impute_mean()

── Model ───────────────────────────────────────────────────────────────────────
Decision Tree Model Specification (classification)

Main Arguments:
  cost_complexity = 1e-10
  tree_depth = 5
  min_n = 2

Computational engine: rpart

cart_fit <- fit(
  cart_final_wf,
  analysis_train)

cart_fit

saveRDS(cart_fit, here("model_outputs", "tree_fit.rds"))

tree_pred <-
  augment(cart_fit, analysis_train) |>

  select(WeaponCarryingSchool, .pred_class, .pred_1, .pred_0)

tree_pred

# A tibble: 14,696 × 4
   WeaponCarryingSchool .pred_class .pred_1 .pred_0
   <fct>                <fct>         <dbl>   <dbl>
 1 0                    0            0.0396   0.960
 2 0                    0            0.0396   0.960
 3 0                    0            0.0396   0.960
 4 0                    0            0.0396   0.960
 5 0                    0            0.0396   0.960
 6 0                    0            0.0396   0.960
 7 0                    0            0.0396   0.960
 8 0                    0            0.0396   0.960
 9 0                    0            0.0396   0.960
10 0                    0            0.0396   0.960
# ℹ 14,686 more rows

roc_tree <- tree_pred |>
  roc_curve(truth = WeaponCarryingSchool, .pred_1,
            event_level = "second") |>
autoplot()

saveRDS(roc_tree, here("models", "roc_graphs","tree.rds"))

#second part
tree_pred |>
  roc_auc(truth = WeaponCarryingSchool,
           .pred_1,
           event_level = "second")

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 roc_auc binary         0.544

saveRDS(roc_tree, here("models", "roc_graphs", "tree.rds"))

fit_resamples(cart_final_wf, resamples = analysis_folds) |>
  collect_metrics()

# A tibble: 3 × 6
  .metric     .estimator   mean     n std_err .config
  <chr>       <chr>       <dbl> <int>   <dbl> <chr>
1 accuracy    binary     0.955      5 0.00141 Preprocessor1_Model1
2 brier_class binary     0.0412     5 0.00135 Preprocessor1_Model1
3 roc_auc     binary     0.592      5 0.0226  Preprocessor1_Model1

library(rpart.plot)

Warning: package 'rpart.plot' was built under R version 4.3.3

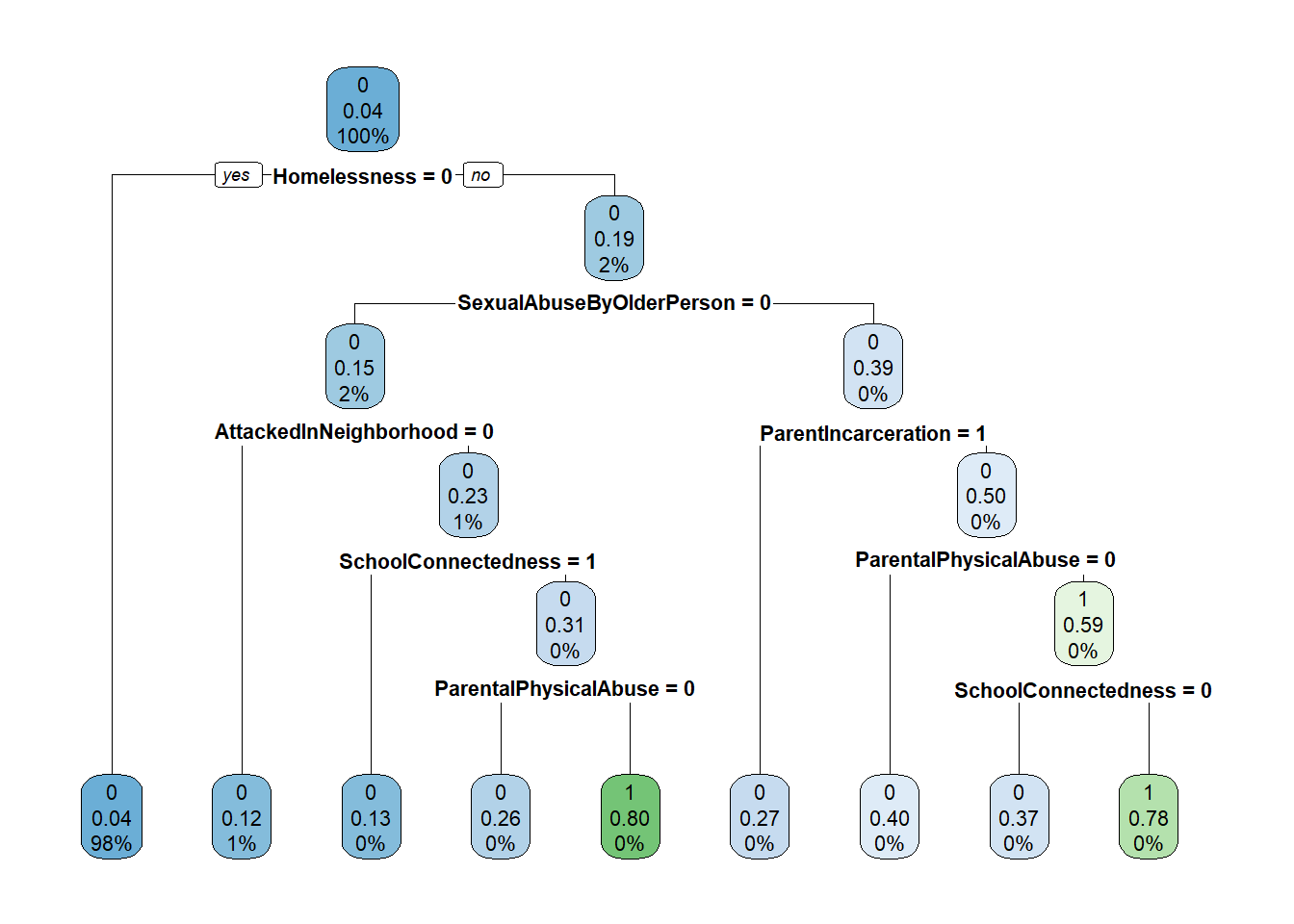

cart_fit |>
  extract_fit_engine() |>
rpart.plot::rpart.plot(roundint=FALSE)
